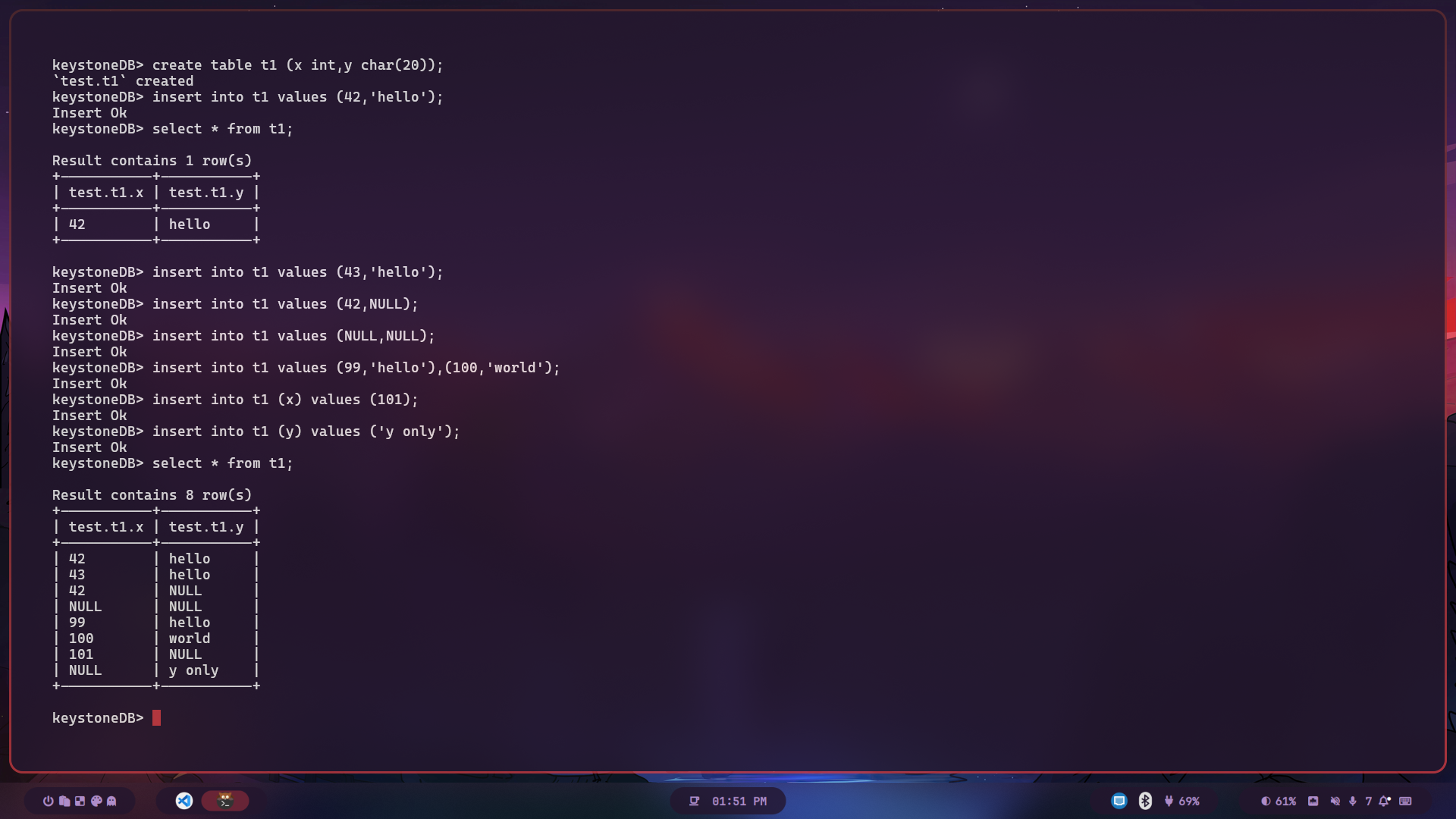

Project Demo Video

keystoneDB

A relational DBMS built upon persistent key-value storage

Database Management Systems Laboratory (CS39202) Term Project

Key Features

Expression Evaluation

Support for nested expressions including arithmetic operations, logical operations, and more

Multiple Data Types

Support for INT, FLOAT, and CHAR(N) data types

Constraints

NOT NULL constraint, SQL comments, and more

Multi-line Support

Execute multi-line SQL statements with ease

File Execution

Run SQL scripts directly from files

Persistent Storage

Built upon LSM-Tree like MyRocks and TiDB

Build Instructions

Ubuntu 22.04

To get the third party dependencies (via source code), run:

git submodule init
git submodule update

Install the following libraries on your computer:

# required by rocksdb
sudo apt-get install libgflags-dev libzstd-dev libsnappy-dev zlib1g-dev libbz2-dev liblz4-dev
# required by protobuf
sudo apt-get install libprotobuf-dev protobuf-compiler
# required by flex and bison
sudo apt-get install flex bison

Arch Linux

# Required by RocksDB
sudo pacman -S gflags zstd snappy zlib bzip2 lz4 liburing-dev

# Required by Protobuf
sudo pacman -S protobuf

# Required by flex and bison
sudo pacman -S flex bison

If compiling the GRPC library gives an error, you need to recompile the db.proto with:

protoc --cpp_out=./ common/codec/db.proto

Note: This code was tested on Arch Linux. If you are running on Ubuntu there can be an error related to abseil. If you encounter this error, you need to comment lines 153 and 154 in the CMakeLists.txt file.

Building the Project

mkdir build
cd build
cmake ..
make -j4

Note: On building it the libfort library might gives an error with cmake .. commands due the libfort cmake version specified. IF you update the libfort Cmake Version then the code does not compile. A fix to that is to run the command cmake -DCMAKE_POLICY_VERSION_MINIMUM=3.5 .. in the build directory first then run cmake .. and then make -j4.

Supported SQL Examples

CREATE DATABASE example;
USE example;
CREATE TABLE user (id int, score float);
SHOW TABLES;
INSERT INTO user (id int NOT NULL) VALUES (1);
SELECT id from user WHERE id = 42;
UPDATE user SET id=1 WHERE id=42;
DELETE FROM user WHERE id=42;
SELECT * from user where id=(1+2*2+(id=id)+id^id+id) AND id = id%2 AND id IS NOT NULL;
select * from t1 where id is not null;
DROP TABLE user;
exit; -- keyword used to exit from the database

Additional examples can be found in test.sql.

Project Structure

File	Description
include/*	all the header files
sql/*	intermediate representation(IR) for SQL
executor/*	execute SQL IR
executor/processor/*	processor for SQL expression(visitor pattern)
parser/sql.l	lexical analysis for SQL(flex)
parser/sql.y	syntax analysis for SQL(bison)
third_party/*	third party dependencies, e.g., googletest, rocksdb
test/*	unit test
docs/*	documentation for the project

How to Run

# Assuming you are in build directory
./build/keystoneDB
